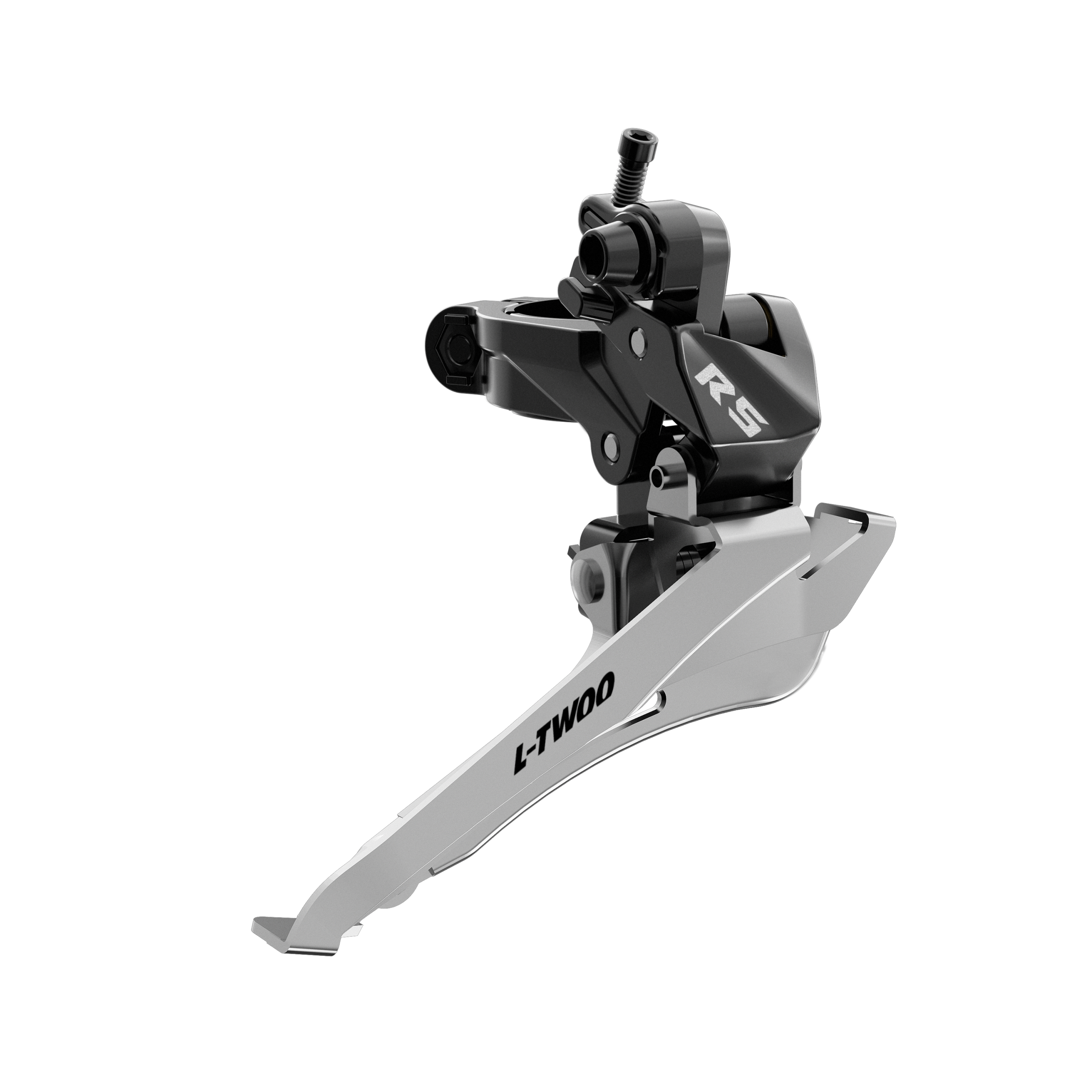

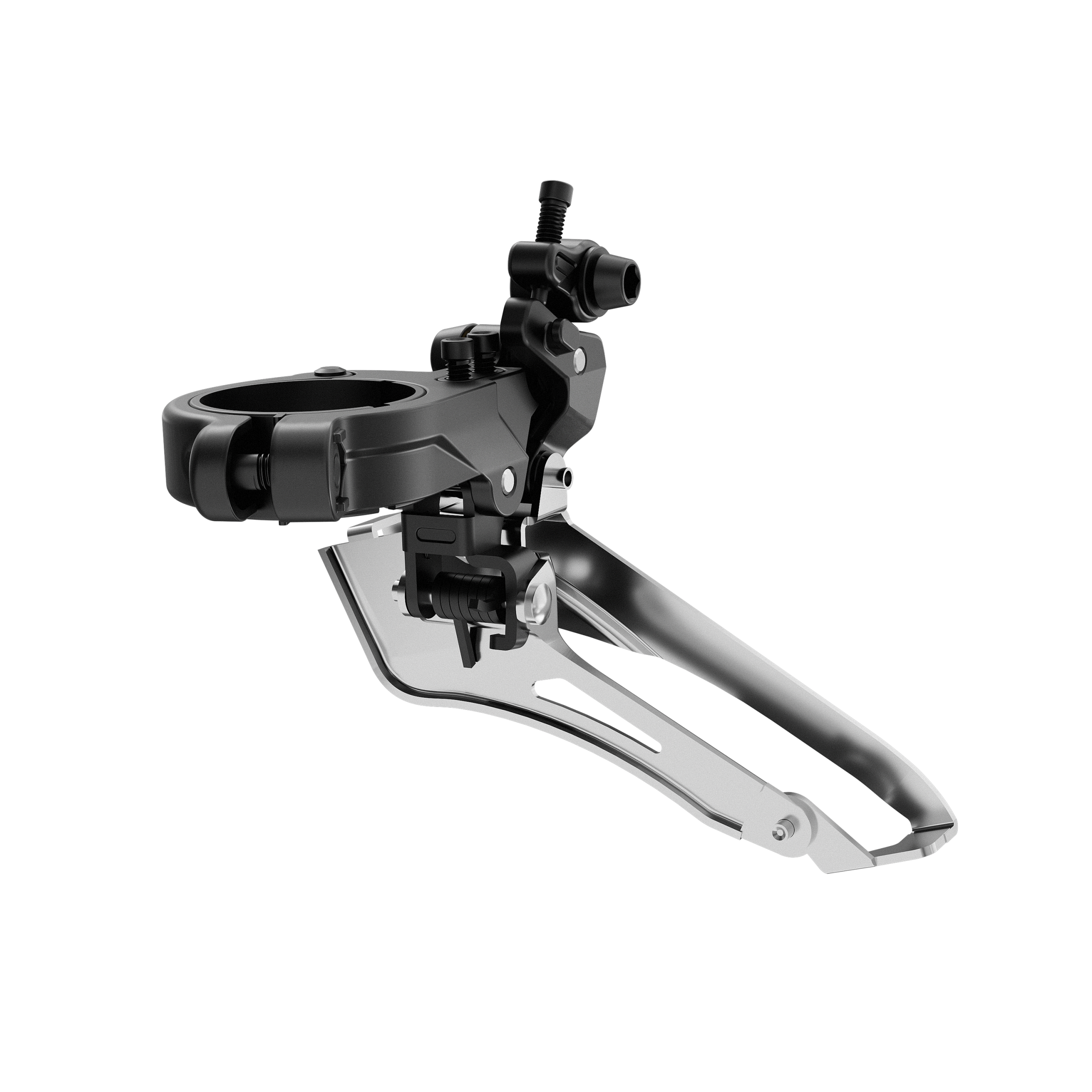

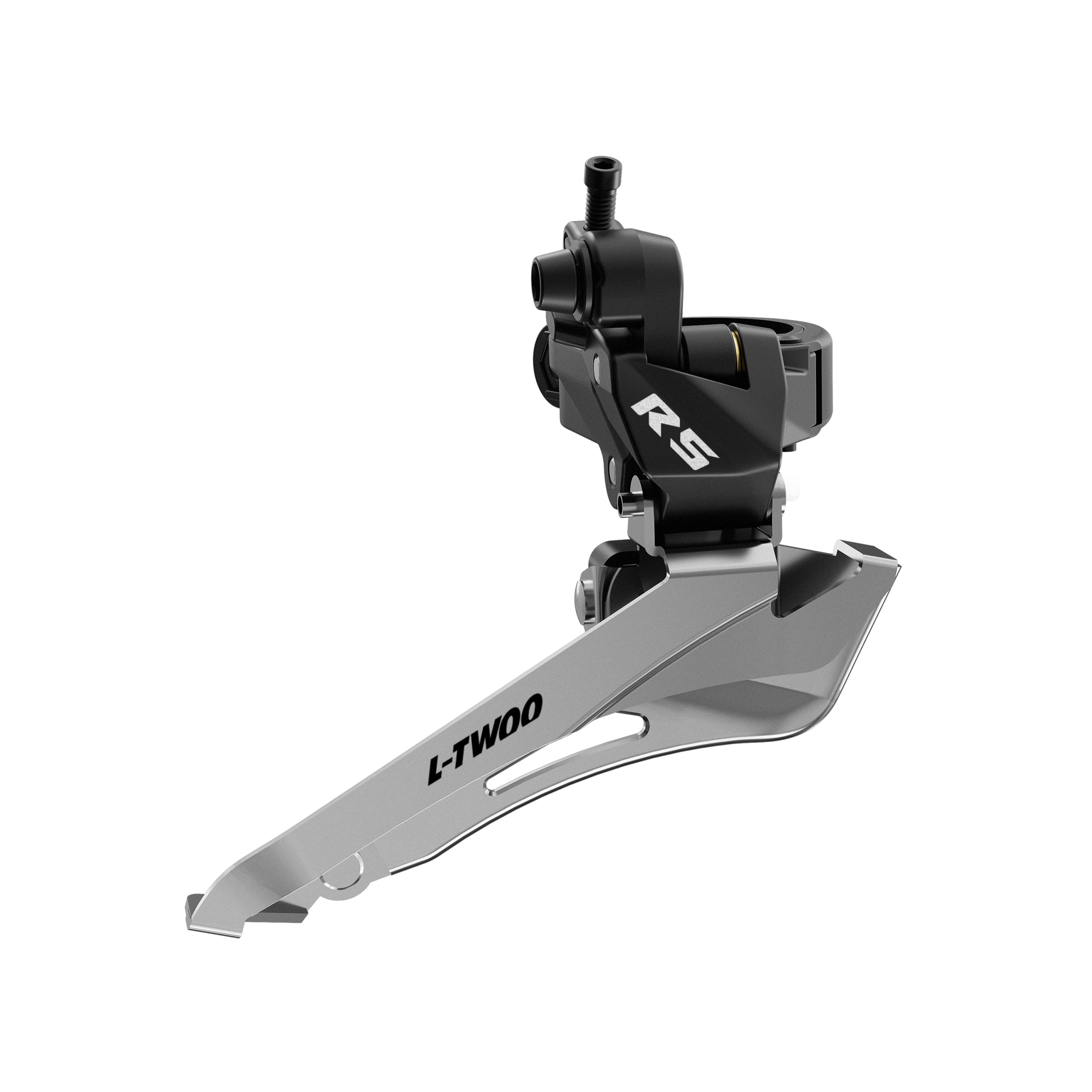

FD-R0901-C

Trade accounts only

SKU: FD-R0901-C
Category:
Tag:

Description

Features

  • FD-Micro Tune
  • The Micro Tune structure is positioned at the top of the front derailleur and utilizes a precision adjustment screw to finely regulate the cable tension and lateral alignment of the front derailleur, replacing the function of traditional inline barrel adjusters.

Specifications

Front speed2
Rear speed9
Pull wire wayDown pull
Installation type – Clamp31.8mm, 34.9mm
Shift cable tension fine adjustmentYes
maximum compatible sprocket(T)56
Total capacity16
Installation angle (°)61-66
Chain line (mm)43.5
ColorSilver

Additional information

Groupset

Flat Bar, Mechanical Shifting, Drop Bar, Mechanical Shifting & Hydraulic Disc Brake, Drop Bar, Mechanical Shifting & Cable Brake

Front speed

2

Rear speed

9

Pull wire way

Down pull

Installation type - Clamp

31.8mm, 34.9mm

Shift cable tension fine adjustment

Yes

maximum compatible sprocket(T)

56

Total capacity

16

Installation angle (°)

61-66

Series

R5

Top Category

ROAD

Component

Front Derailleur
